Hardware
Need the right Hardware for ContourTrace?
Get the Surface Gantry CT-2DM-600X420.
Quality, precision and shape accuracy of the captured contours depend on the hardware used.
The Surface Gantry CT-2DM-600X420 offers the optimal solution here.
Scroll down and see for yourself!
Live Camera and Result View
See what the camera sees and move the camera only over the parts of the objects you want to capture. The result is immediately available as the images are stitched live in the ContourTrace software.
Manual Camera Movement
The camera is manually guided by the operator over the areas to be captured. Using the position markers, the software determines the camera position and computes the orthogonal image live.
Workspace 600x420 mm

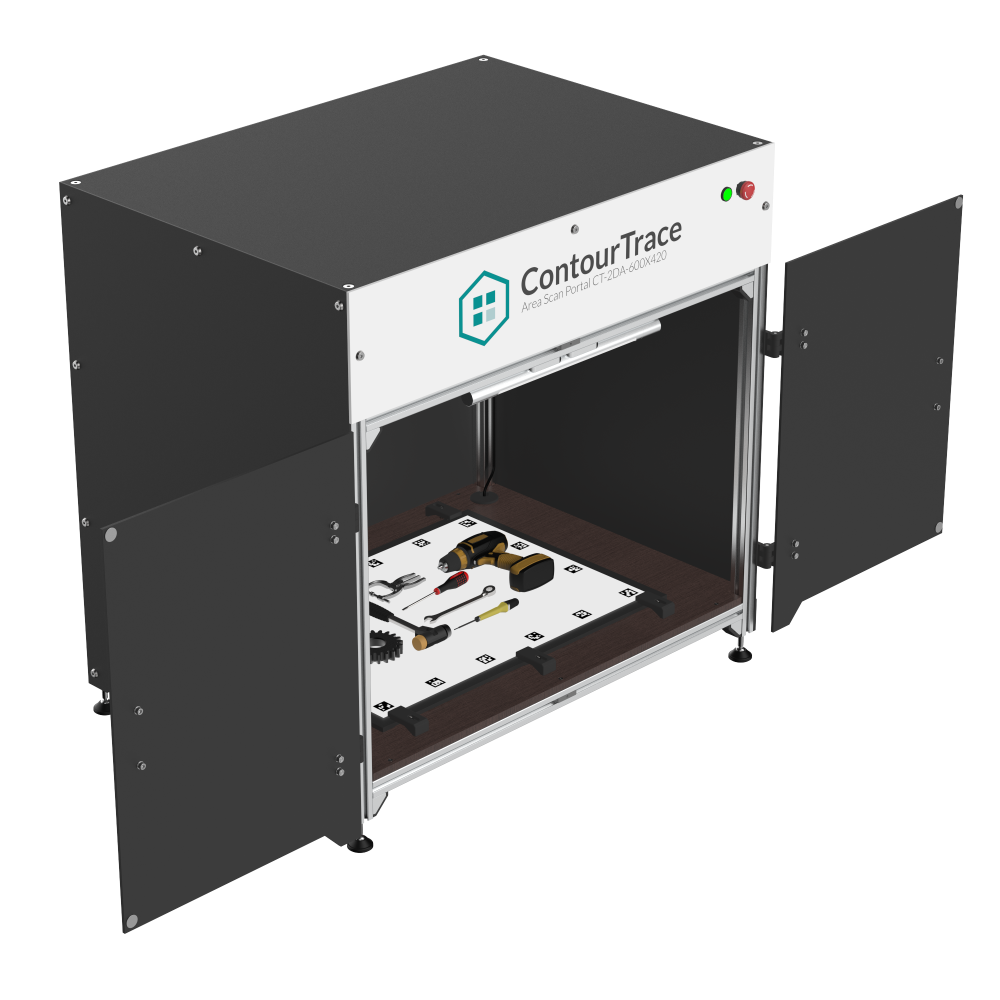

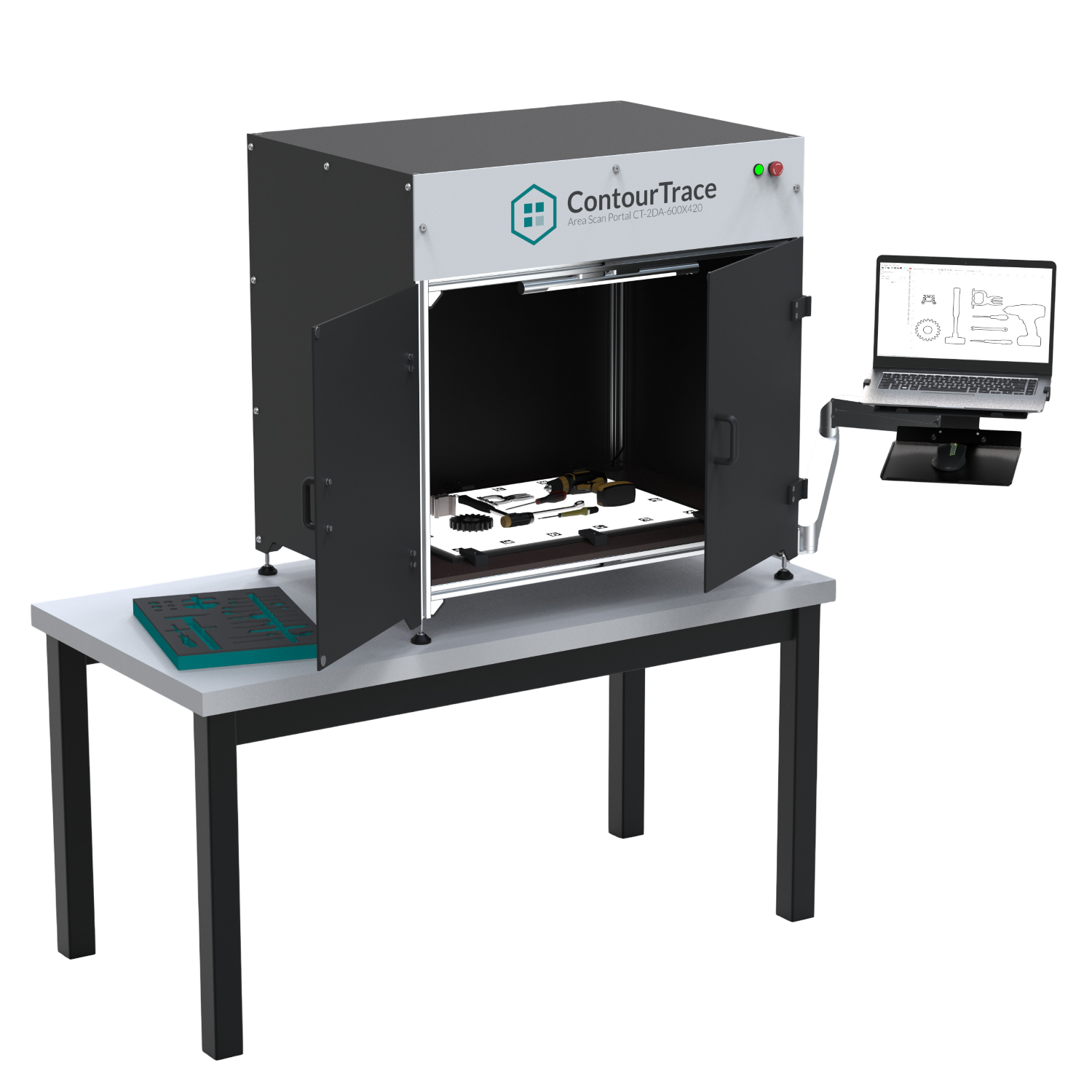

Capture the contours of objects up to 600x420 mm or place multiple objects on the surface to capture all contours in one shot. The overall dimensions of the planar surface gantry are LxWxH 900x640x900 mm.
Different Camera Sensors
The portal can be used with various industrial camera sensors. But it is also possible to attach and use a digital camera, e.g. DSLR and DSLM or even a smartphone. Let us advise you or just try it out.
Different Camera Lenses
The portal can be used with industrial perspective and telecentric lenses. But it is also possible to attach and use a digital camera, e.g. DSLR and DSLM with appropriate lens or even a smartphone. Let us advise you or just try it out.
Camera height adjustable
The image resolution as well as the depth of field essentially depend on the camera distance. Therefore, it is possible to adjust the camera height. In the first step, this is done via the adapter to which the camera is attached. If this is not sufficient, the height of the support surface for the objects can also be varied.
Optimal Camera Alignment
The camera axis must be exactly orthogonal to the image surface to be captured. Otherwise, the precision and shape accuracy of the captured contours suffers. To ensure that this can be set precisely, there is a leveling device that makes this possible.
Light shield
To ensure consistent quality, the system is protected from external light sources by a cover. Therefore, image captures are possible at any time under constant conditions.
Would you like to see more?
Contact us and ask for a no-obligation and free online live presentation.
